詳細情報 |
|||
| 使用法: | 丸型と平型の電線 | 生産性: | 30メートル/分 |
|---|---|---|---|
| 原材料: | ライトストリップ | 電源: | 28kw |
| タイプ: | ケーブル製造機 | 該当する業界: | 製造工場 |
| 力: | 5kW | 最後の生産: | ワイヤー |
| 線径: | 0.5平方ミリ - 6平方ミリ,10平方ミリ未満 | ロール スピード: | 780 RPM 最大 |
| 生産能力: | 100m/min | ローカルサービスの場所: | サウジアラビア |
| 使用: | 曲がりくねっています | アフター保証サービス: | ビデオテクニカルサポート |
| 仕上がり線径: | 1.0~12mm | ||
製品の説明
The 70+35 High-Speed Cable Extruder Line is designed for the precise extrusion of various wire and cable insulation materials such as PVC, PE, LSZH, and other thermoplastics.
It is widely used for producing electrical wires, communication cables, and power cables with stable performance, smooth surface finish, and excellent concentricity.

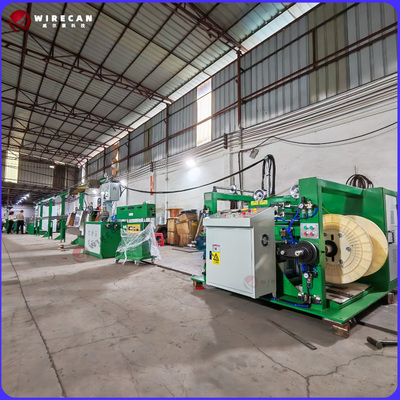

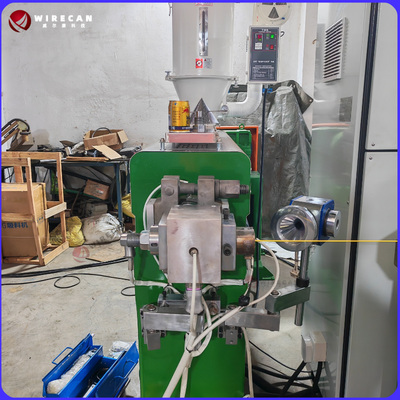

This production line consists of a main extruder (Φ70mm) and a secondary extruder (Φ35mm), which can be used for single-layer or dual-layer insulation extrusion, providing flexibility for different cable structures.
Main Features
-
High-speed and energy-efficient extrusion with advanced temperature control.
-

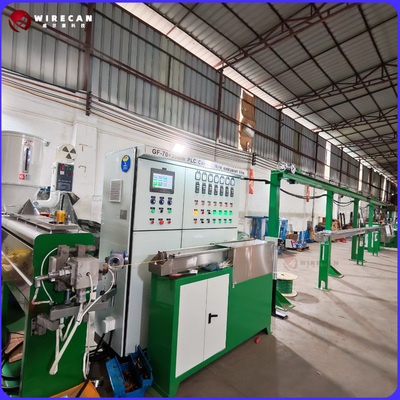

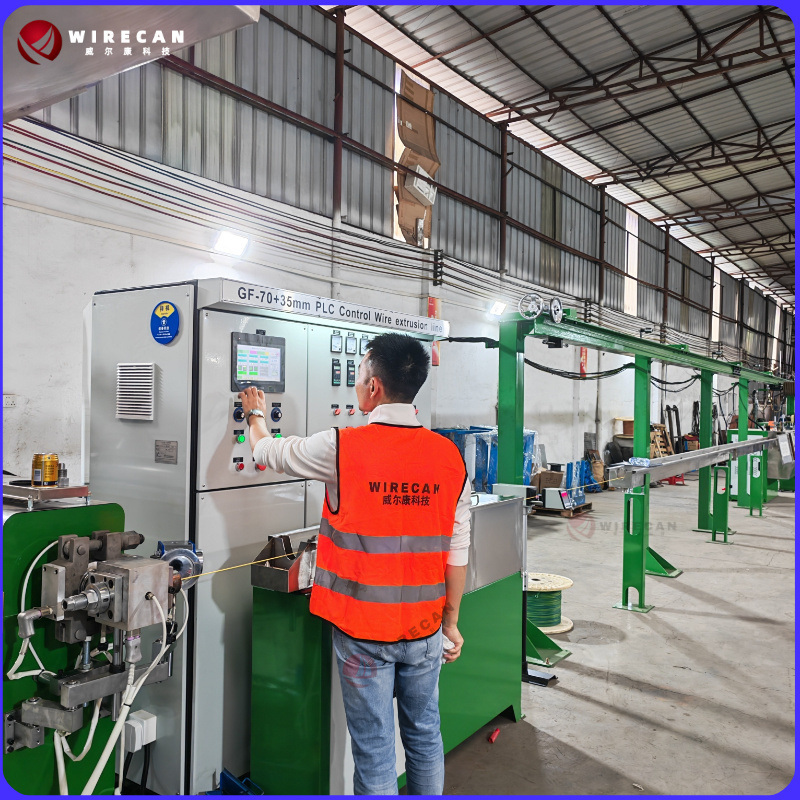

SIEMENS PLC system with a user-friendly touch screen interface for precise control.
-
Dual extruder design (70+35) for color skin or co-extrusion applications.
-

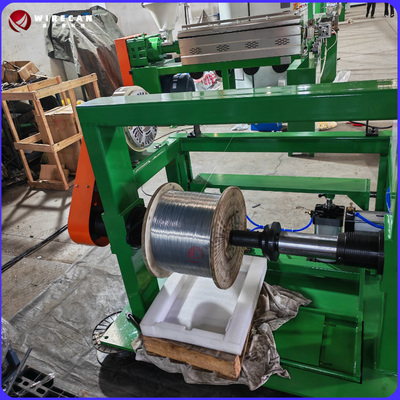

High-precision caterpillar and take-up system ensures stable wire tension and diameter.
-
Automatic meter counting, speed synchronization, and fault alarm functions.
-
Suitable for PVC, PE, LSZH, TPU, and other insulation materials.
-
Compact structure and modular design for easy maintenance and quick operation.
Technical Specifications
| Item | Specification |
|---|---|
| Main Extruder | Φ70 mm |
| Co-Extruder | Φ35 mm |
| Applicable Materials | PVC, PE, LSZH, TPU |
| Line Speed | Up to 300 m/min |
| Wire Diameter Range | 0.5–10 mm |
| Power Supply | AC 380V ±10%, 50Hz |
| Total Power | Approx. 55 kW |
| Control System | SIEMENS PLC + Touch Screen |
| Cooling Type | Water Cooling System |
| Take-up Type | Automatic Dual Spool Take-up |
Advantages
-
High-quality components from international brands ensure reliability.
-
Energy-saving screw design for high plasticizing efficiency.
-
Perfect roundness and insulation uniformity of finished cables.
-
OEM customization available for different cable specifications.
-
Comprehensive after-sales support, including installation, commissioning, and training.
Applications
-
Power cable insulation extrusion
-
Communication and data cable production
-
Building wire manufacturing
-
Flexible cable and automotive wire insulation
